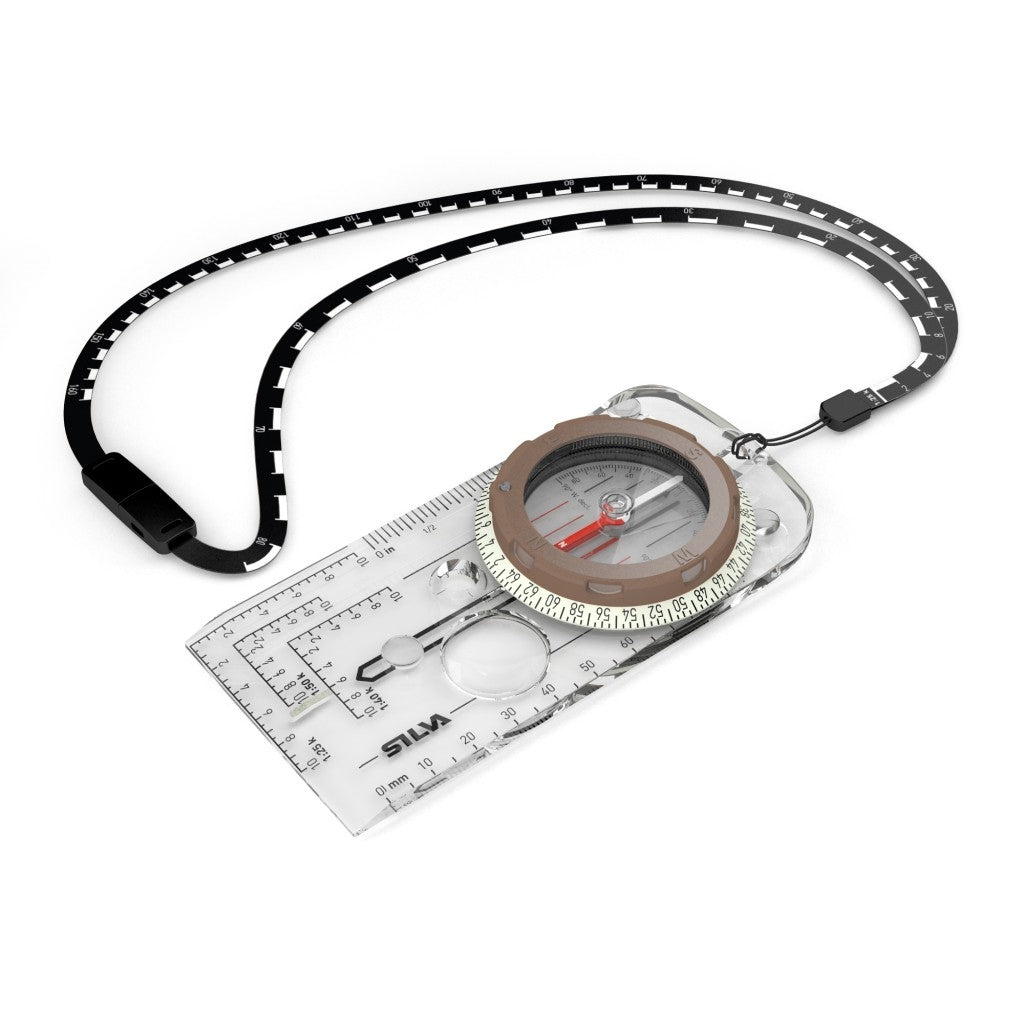

SILVA MILITARY 5 6400/360 MS Military Compass
The “full-sized” base plate compass for experienced navigators – used by NATO Forces around the world. Mainly used by the infantry as a soldier’s or officer’s Compass.
Additional features include measuring scales for positioning (GPS), graduation in mils and degrees (6400/360), integrated adjuster for magnetic declination, magnifying lens and rubber feet for precision map work. The compass has a luminous graduation ring and markings for compass reading in the dark. Once activated by daylight/flashlight it will give light up to 4 hours of light. The included scale lanyard and slope card makes it easier to quickly make a distance judgement of your route or to plan your route in advance.
"MS" Optimised for Australia and New Zealand
Additional features include measuring scales for positioning (GPS), graduation in mils and degrees (6400/360), integrated adjuster for magnetic declination, magnifying lens and rubber feet for precision map work. The compass has a luminous graduation ring and markings for compass reading in the dark. Once activated by daylight/flashlight it will give light up to 4 hours of light. The included scale lanyard and slope card makes it easier to quickly make a distance judgement of your route or to plan your route in advance.
"MS" Optimised for Australia and New Zealand
- measuring scales for positioning (GPS)
- graduated in mils and degrees (6400/360)
- magnifying glass
- slope card and scale lanyard
- declination adjustment
- clinometer
- luminous markings - illuminates for up to 4 hours after activation
- rubber feet for precision map work
- 5-year warranty
- Article number: 37585
- Accuracy: ± 1° (17.8 mils)
- Altitude use: 5000m @-15 °C
- Attachment: Detachable safety-release scale lanyard, Slope card
- Clinometer: Yes
- Declination adjustment: Yes
- Graduation: 6400° / 360°
- Illumination: 4 hours after activation in light, Luminous markings
- Impact resistance: 30g in XYZ directions and free fall from 1.5 m height into gravel
- Magnifying lens: Yes
- Material: Acrylic, PC/ABS, TPU
- Resolution degrees / mils: 2 / 50
- Sapphire jewel bearing for friction-free movement of the compass needle: Yes
- Scales: Baseplate: 1:25k, 1:40k, 1:50k, mm, inch, Lanyard; 1:25, / 1:50
- Settling time from 90° angle to complete rest: 5 sec
- Settling time from 90° angle within ± 3°: 2.7 sec
- Sighting System: No
- Silicon friction feet: Yes
- Size: 126 x 60 x 13 mm
- Type of compass: SILVA 1-2-3, baseplate
- Temperature operating range: -30 to +60 C
- Patented red/black N/S lines in capsule: Yes
- Turnable capsule: Yes
- UTM position plotting scales (Romer scales): 1:25k, 1:40k, 1:50k
- Weight: 50 grams
- Other: GPS scales
